Reed Instruments

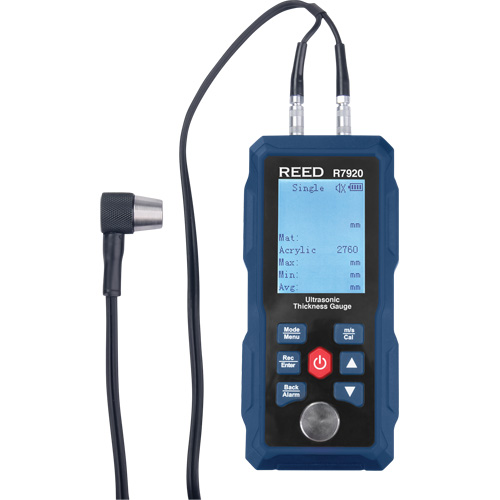

Thickness Gauge with 5-Step Calibration Block, Digital Display, Ultrasound

Model: ID361

Mfr. No.: R7920

  • Thickness Gauge with 5-Step Calibration Block, Digital Display, Ultrasound Pryde Industrial Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$695.00 / Each

0 In Stock - Off-Site Warehouse

Display

Digital

Measuring Mode

Ultrasound

Accuracy

<10mm: ±0.1mm

Measuring Range

0.04 to 11.8" (1 to 300mm)

Velocity Range

1000 to 9999m/s (0.039 to 0.394in/µs)

Probe Length

3' (91cm)

Probe Diameter

0.5" (12.7mm)

Operating Temperature

32 to 104°F (0 to 40°C)

Operating Humidity Range

20 to 80%


  • Internal memory capable of storing up to 300 readings with user alarm thickness limits and features the 5-step calibration block
  • Measures the thickness of steel, cast iron, aluminum, acrylic resin, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, and nodular cast iron
  • Easy-to-read backlit LCD display
  • User-selectable units of measure (in/mm)
  • Displays sound velocity at the touch of a button
  • User-adjustable High/Low alarms
  • Automatic material calibration
  • Auto shut-off and low battery indicator
