Reed Instruments

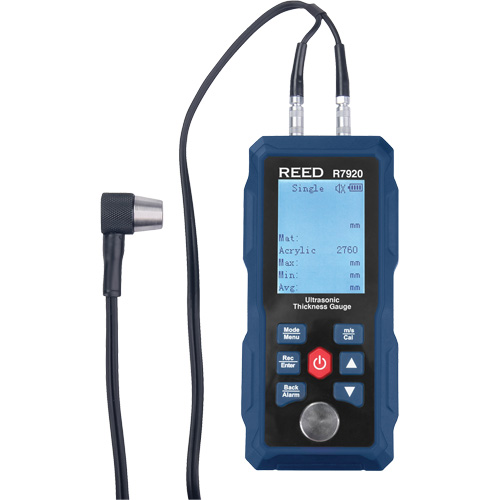

Thickness Gauge, Digital Display, Ultrasound, 0.04" - 11.8" (1 mm - 300 mm) Range

Model: ID026

Mfr. No.: R7920

  • Thickness Gauge, Digital Display, Ultrasound, 0.04" - 11.8" (1 mm - 300 mm) Range Pryde Industrial Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$695.00 / Each

0 In Stock - Off-Site Warehouse

Includes

  • Ultrasonic Thickness Gauge
  • Ultrasonic Couplant Gel
  • Probe
  • USB Cable
  • Carrying Case

Manufacturer's Warranty

  • 1 Year

Display

Digital

Measuring Mode

Ultrasound

Thickness Range

0.04" - 11.8" (1 mm - 300 mm)

Accuracy

<10mm: ±0.1mm, ≥10mm: ±(1% rdg. +0.1mm)

Resolution

0.1mm/0.01mm/0.01"

Velocity Range

1000 to 9999m/s (0.039 to 0.394in/µs)

Compatible Materials

Steel, cast iron, aluminum, acrylic resin, red copper, brass, zinc, quartz glass, polyethylene, PVC, grey cast iron, and nodular cast iron

Display

2.4" monochrome dot matrix screen

Probe Length

3' (91cm)

Probe Diameter

0.5" (12.7mm)

  • A portable device used for non-destructive measurement of the thickness of metal and other materials
  • Uses high-frequency sound waves to determine the thickness of a material by measuring the time it takes for the sound waves to travel from the gauge to the material and back
  • Easy-to-read backlit LCD display
  • User-selectable units of measure (in/mm)
  • Internal memory stores up to 300 measurements
  • Displays sound velocity at the touch of a button
  • User-adjustable High/Low alarms
  • Automatic material calibration
  • Auto shut-off and low battery indicator
  • Suitable for use by technicians and inspectors in a variety of industries
